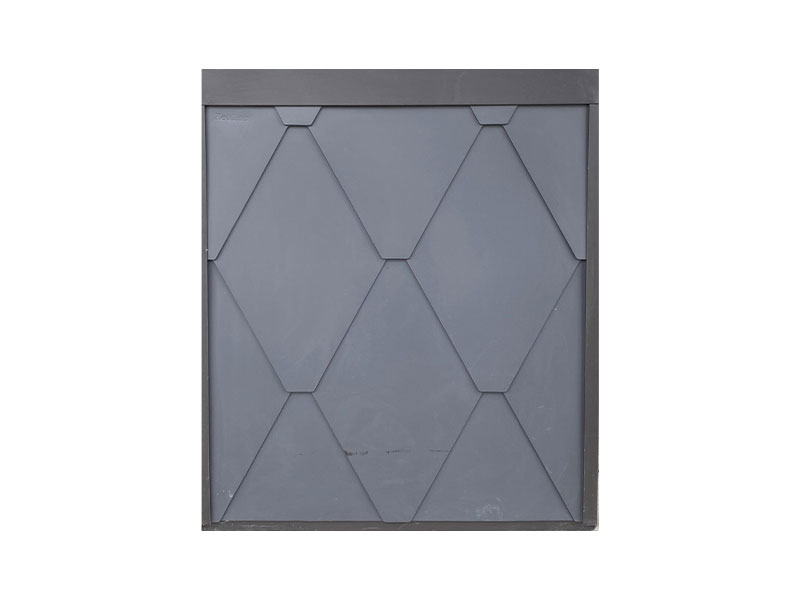

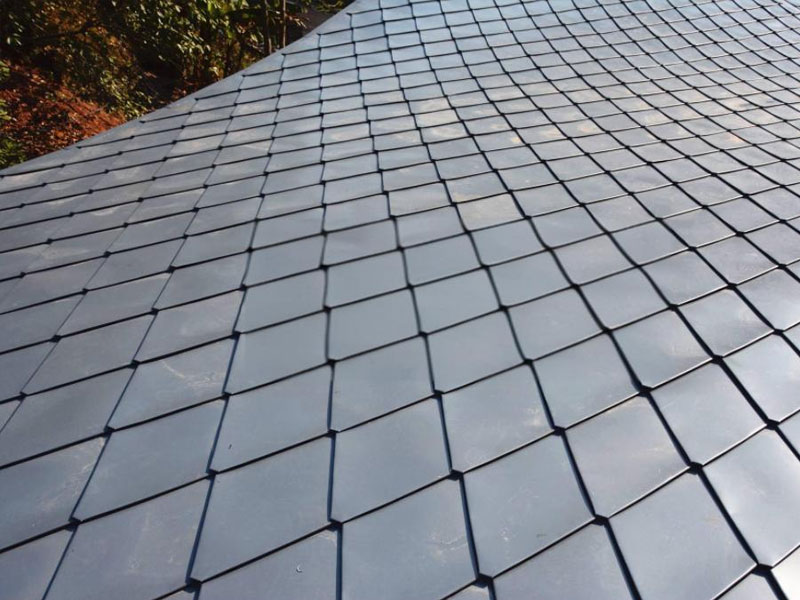

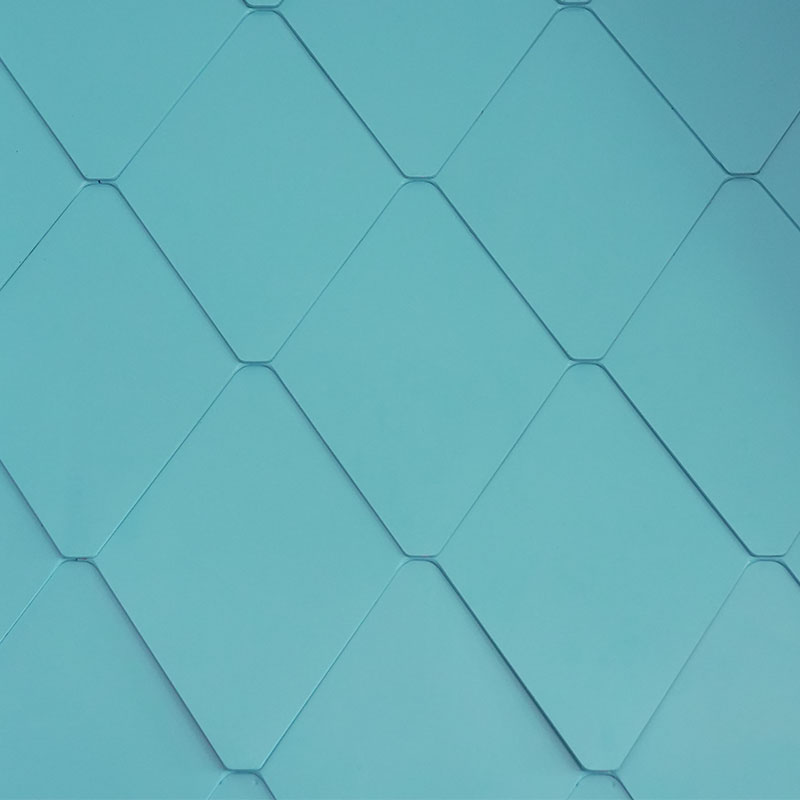

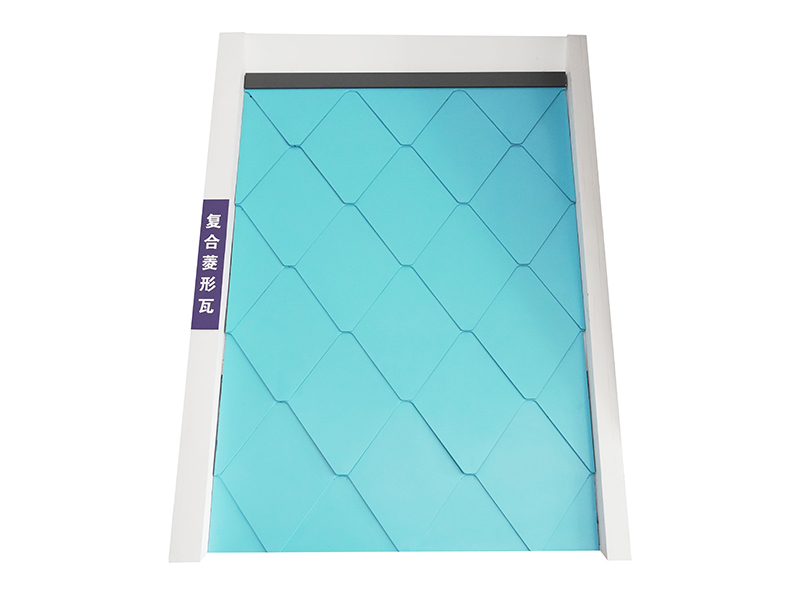

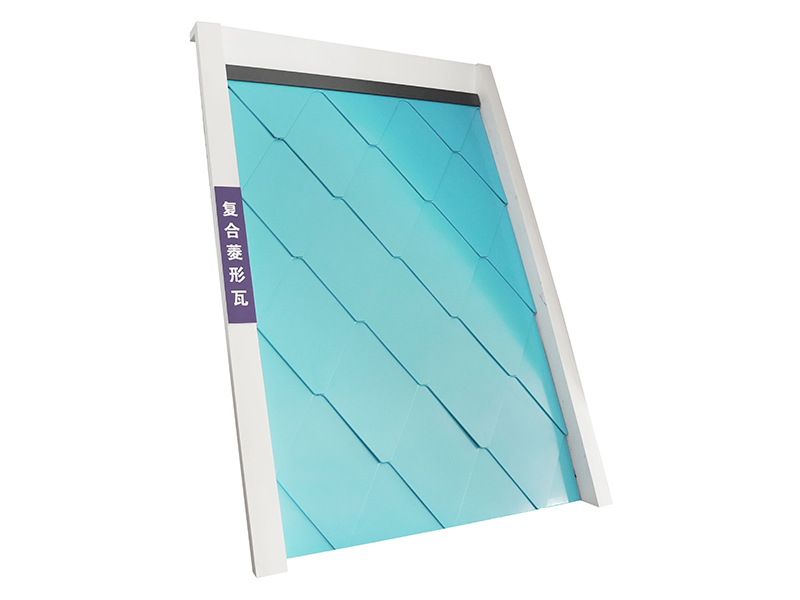

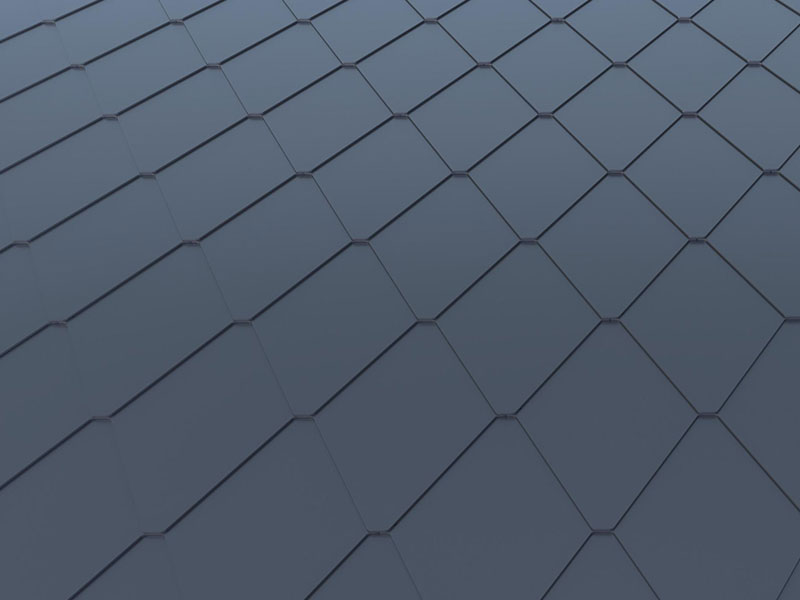

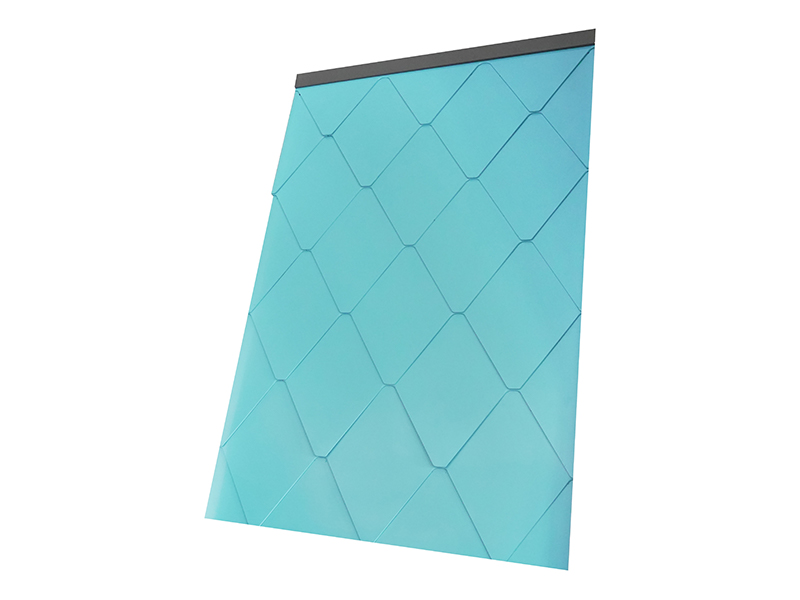

Aluminum Magnesium Manganese Composite Diamond Shaped Metal Roofing Tile

Composite Metal Roofing Tile is a roofing material composed of 3003 series aluminum-manganese alloy and modified asphalt base under high temperature and high pressure. The Composite Metal Roofing Tile is made of 0.45mm thick 3003 series aluminum-manganese alloy; the aluminum plate can generate a very hard and dense oxide film (γ-Al2O3) in the atmosphere at room temperature, with a thickness of 2.5~3.0nm, which has a natural repair function; the surface of the aluminum alloy The coating adopts a fluorocarbon roller coating process with a thickness of 25 μm. Its outdoor weather resistance enables it to have a lifespan of 15 years without fading or pulverizing. In German tests for 30 years, no fading or pulverizing occurred. It can also be laminated with 0.2mm thick copper. Copper has stable properties, good ductility, good corrosion resistance, is easier to maintain, and has ornamental properties. The base material of the metal composite roofing Tile is a customized APP asphalt membrane. The characteristics of this membrane are: no flowing or dripping at high temperatures of 90°C. No slipping. At the same time, Ogilvy's base material adopts a non-exposed form, which is the same as the inverted waterproof type. Because the asphalt material is not exposed and cannot be eroded by light, rain, snow, etc., its lifespan is basically the same as that of the building.
